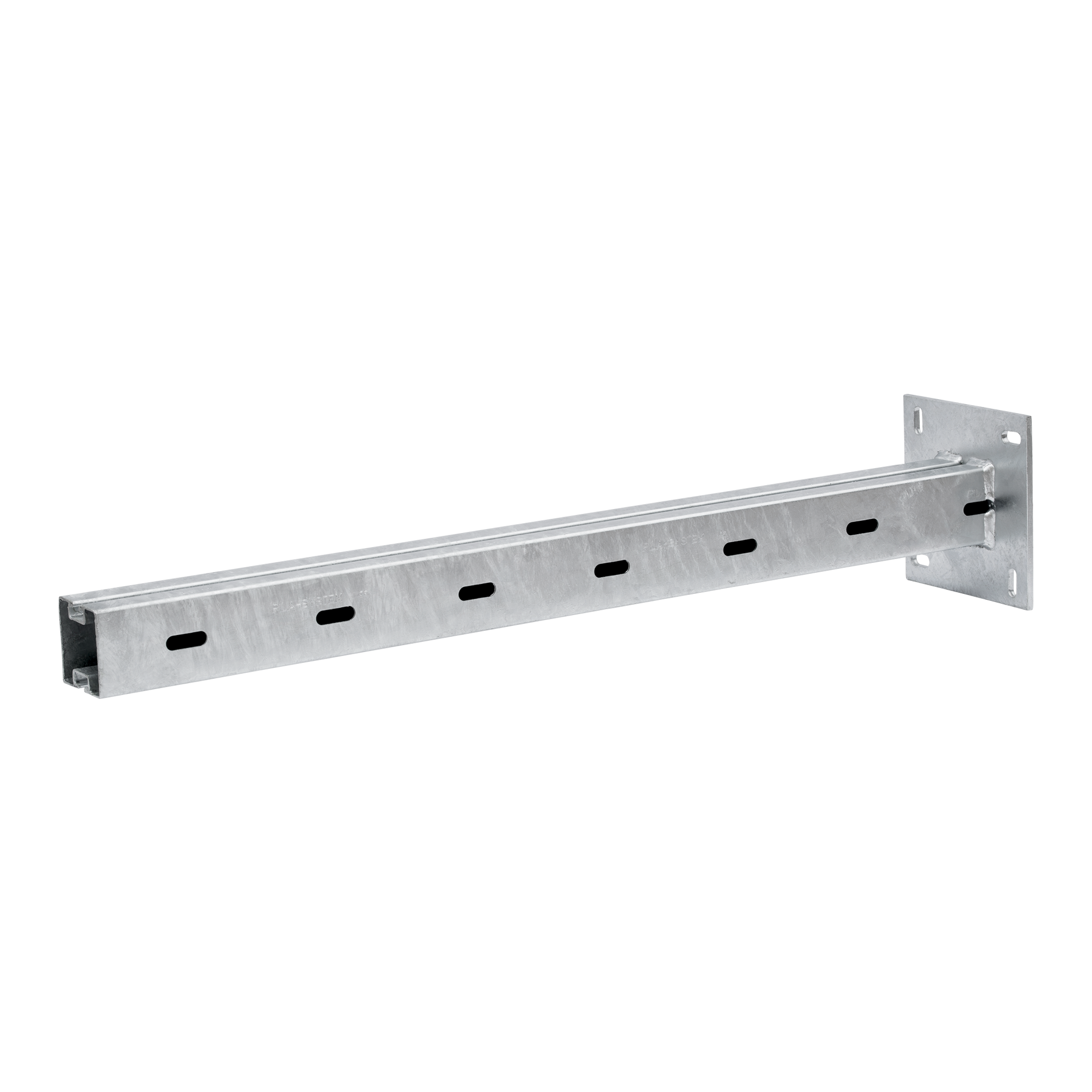

MPT-Consoles Q80

MPT-Consoles Q80

hot-dip galvanised

Display variants as list

Profile:

Q80-2.0

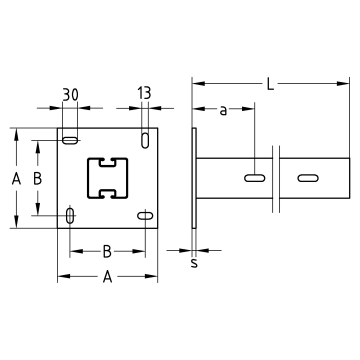

Length L [mm]:

500 750 1,000
Select a variant for further information, images and documents.

Field of application

  • Consoles for accommodation of pipelines and aggregates in shipbuilding and on industrial and plant building sites for attachment on floor, wall and ceiling

Advantages

  • Stable, perforated baseplate for direct or indirect connection to the structure
  • Quick fastening of add-on parts via the dual-side fastening groove
  • Can also be implemented universally as support from the floor or as a shaft from the ceiling
  • Clean-cut appearance by the use of MPT-protection caps
Product type
Wall hanger brackets
Surface
hot-dip galvanised
Material
Steel
eCl@ss 11.1
23-36-02-90
eCl@ss 7.1
23-36-01-90
Support channel systems
for MPT-Profiles
Further technical details can be found in the data sheet.
