MPR-T-Connection plates type S+ QL 1+1 QL

MPR-T-Connection plates type S+ QL

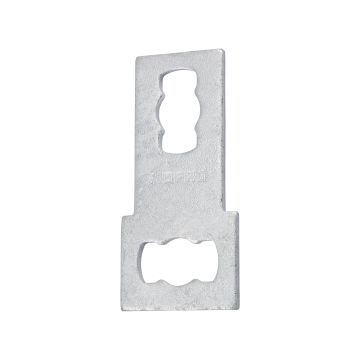

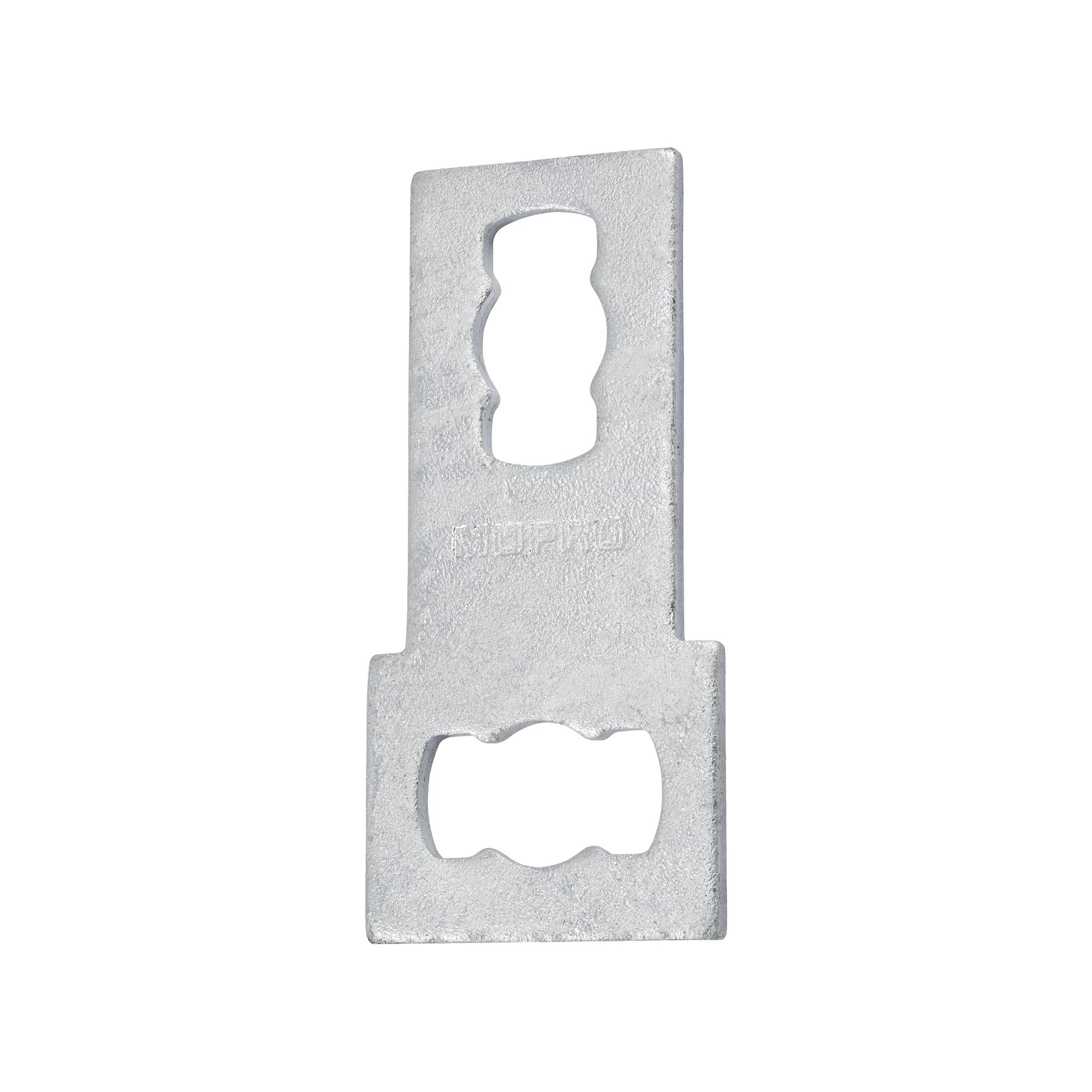

MPR-T-Connection plate type S+, 1+1 QL, for profiles 41/21-41/124, hot-dip galvanised

Art.no.: 175784
Sales unit: 25 Pieces
Weight/item: 0.432 kg

Field of application

  • Stable connection plate for use in cramped mounting situations
  • For indoor and outdoor use

Advantages

  • Simple and quick connection of T-connections
  • The mounting plates enable frame construction in one plane in which the channel slots have the same alignment
  • Quick and simple attachment in combination with the MPR-Connection lock type S+
Support channel systems
for MPR-Profiles
Surface
hot-dip galvanised
eCl@ss 11.1
23-36-02-90
For profiles
41/21-41/124
Basic data text
MPR-T-Connection plate type S+, 1+1 QL, for profiles 41/21-41/124, hot-dip galvanised
eCl@ss 7.1
23-36-02-90
Product type
Quick-mounting system type S+
Design
1+1 QL
Customs tariff number
73269060
Material
Steel
Further technical details can be found in the data sheet.
