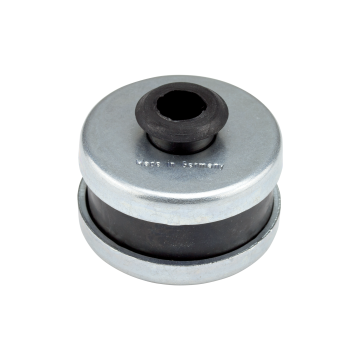

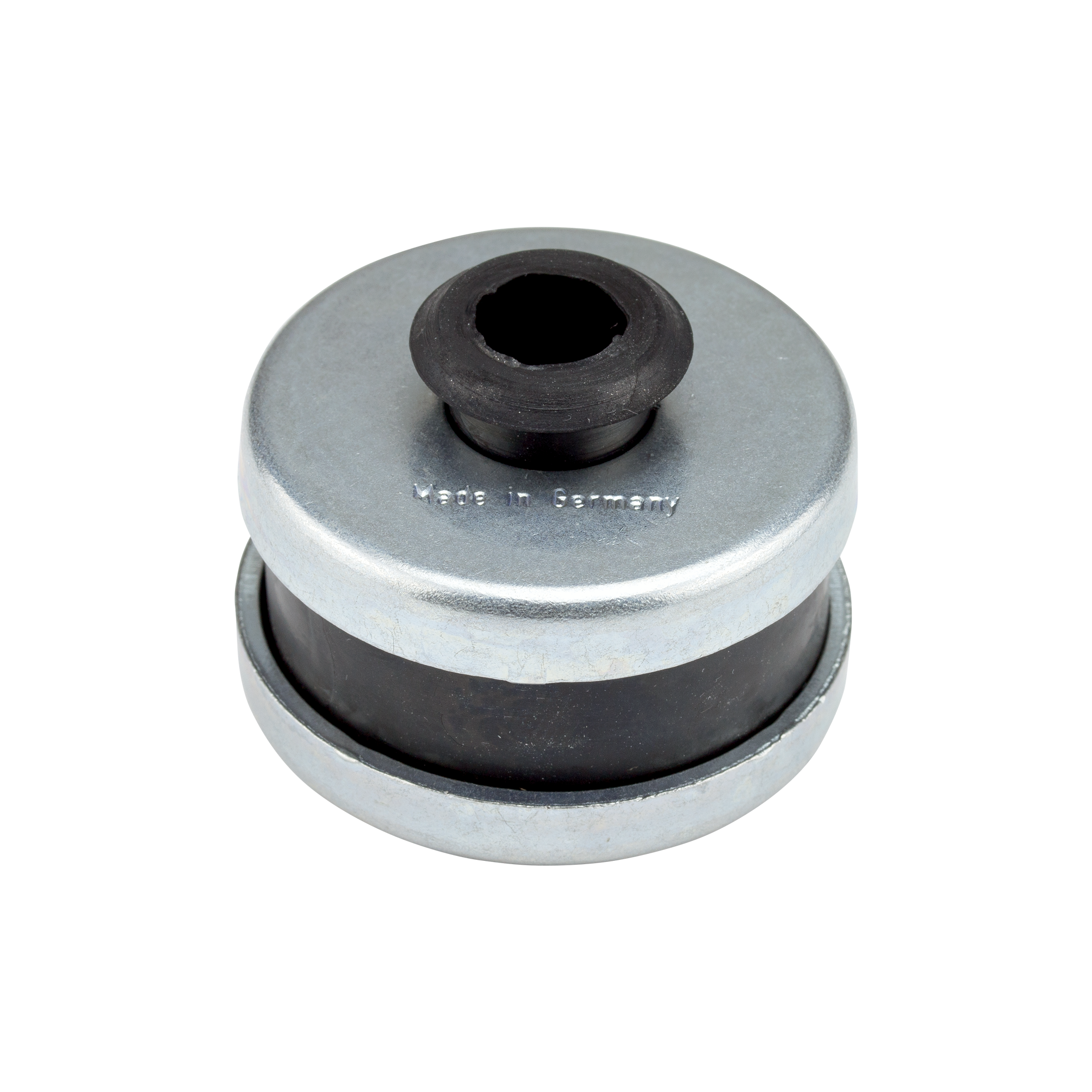

 - DÄMMGULAST® Resilient pad

Field of application
- Vibration control of traverses and pipe bridges made of MPC-Support channels

Advantages
- Effective structure-borne vibration control for many installation situations
 - Bushing to prevent metal contact between screws and mounted object
 - Very simple installation without additional work
 - Average sound level improvement of up to 17 dB(A)
 - Ideal combination with DÄMMGULAST® Washers for vibration-isolated fitting of MPC-Support channels

- eCl@ss 7.1
 - 25-02-04-12
 - Basic data text

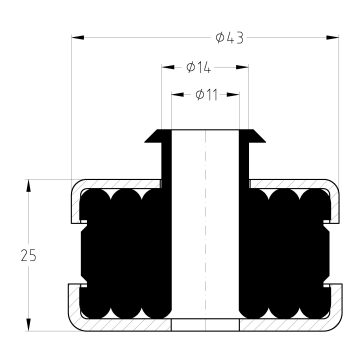

 - DÄMMGULAST® Resilient pad, M8/M10, 43 x 25 mm
 - Surface
 - galvanised
 - eCl@ss 11.1
 - 23-18-90-90
 - Material
 - metal, DÄMMGULAST®
 - Max. recommended load
 - 1000 N
 - Customs tariff number
 - 40169991
 - Average vibration reduction
 - 17 dB(A)
 - Vibration control tested
 - Yes
 - For thread
 - M8/M10
