MPC-Diagonal strut

MPC-Diagonal strut

V2A MPC-Diagonal strut for profiles 38/40-40/120, length: 440 mm

Art.no.: 129788
Sales unit: 1 Pieces
Weight/item: 1.600 kg

Field of application

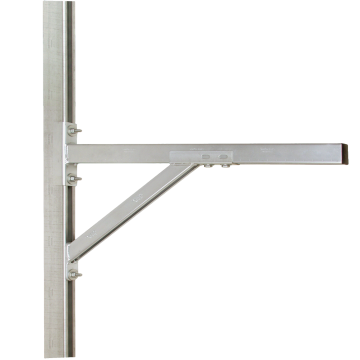

  • Diagonal strut applicable for the direct wall-mounting of wall hanger brackets

Advantages

  • Simple and quick installation due to pre-installed double rail nut
  • With clip-over edges for the wall hanger bracket
  • Oblong holes at the side enable the positioning of MPC-Support channels 38/40 with slot at the side
Basic data text:
V2A MPC-Diagonal strut for profiles 38/40-40/120, length: 440 mm
For profiles:
38/40-40/120
Customs tariff number:
73269060

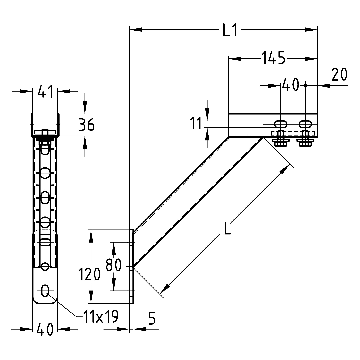

Length L [mm]:
440

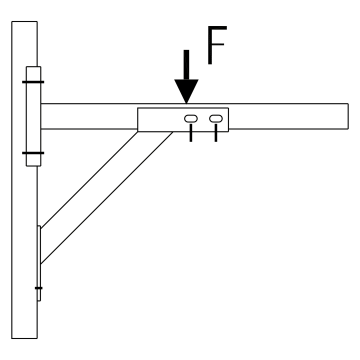

Max. recommended load directly mounted:
6000 N
Material:
V2A
Support channels:
for MPC-Profiles
Surface:
V2A
Max. recommended load mounting in support channel slot:
2500 N
Length L1:
405 mm
Product type:
Connecting parts
