MPR-Support channels

MPR-Support channels

MPR Support channel 41/41/2.5 3000mm without holes, hot dip galvanized

Art.no.: 166723
Sales unit: 1 Pieces
Weight/item: 7.920 kg

Field of application

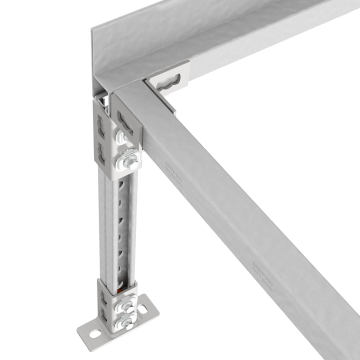

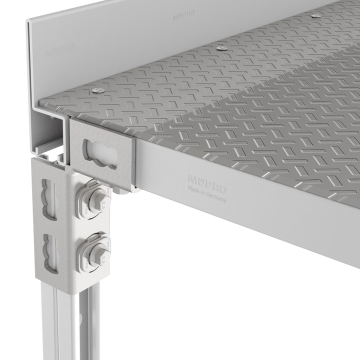

  • Installation of floors and pipingsystems in the technical areas of ships

Advantages

  • Fast and easy installation on site of pipes and floor plates
  • High flexibility of system, as disassembly for maintenance work or subsequent adjustments is possible
  • System can be combined with attachment parts from MPR, MPR type S and MPR type S+
  • Channel slot ensures simple connection of system components
  • Hot-dip galvanised design of channels ensures rapid installation, as there is no need for paint work after installation
Customs tariff number:
72166110
Material:
Steel
Surface:
hot-dip galvanised
Product type:
Support channels
Profile:

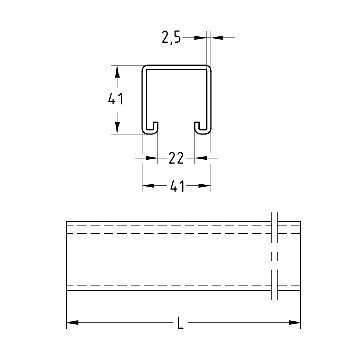

41/41/2.5
Length:
3000 mm
Support channels:
for MPR-Profiles
Basic data text:
MPR Support channel 41/41/2.5 3000mm without holes, hot dip galvanized
