2-hole bars

2-hole bars

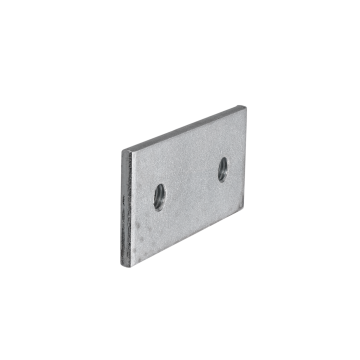

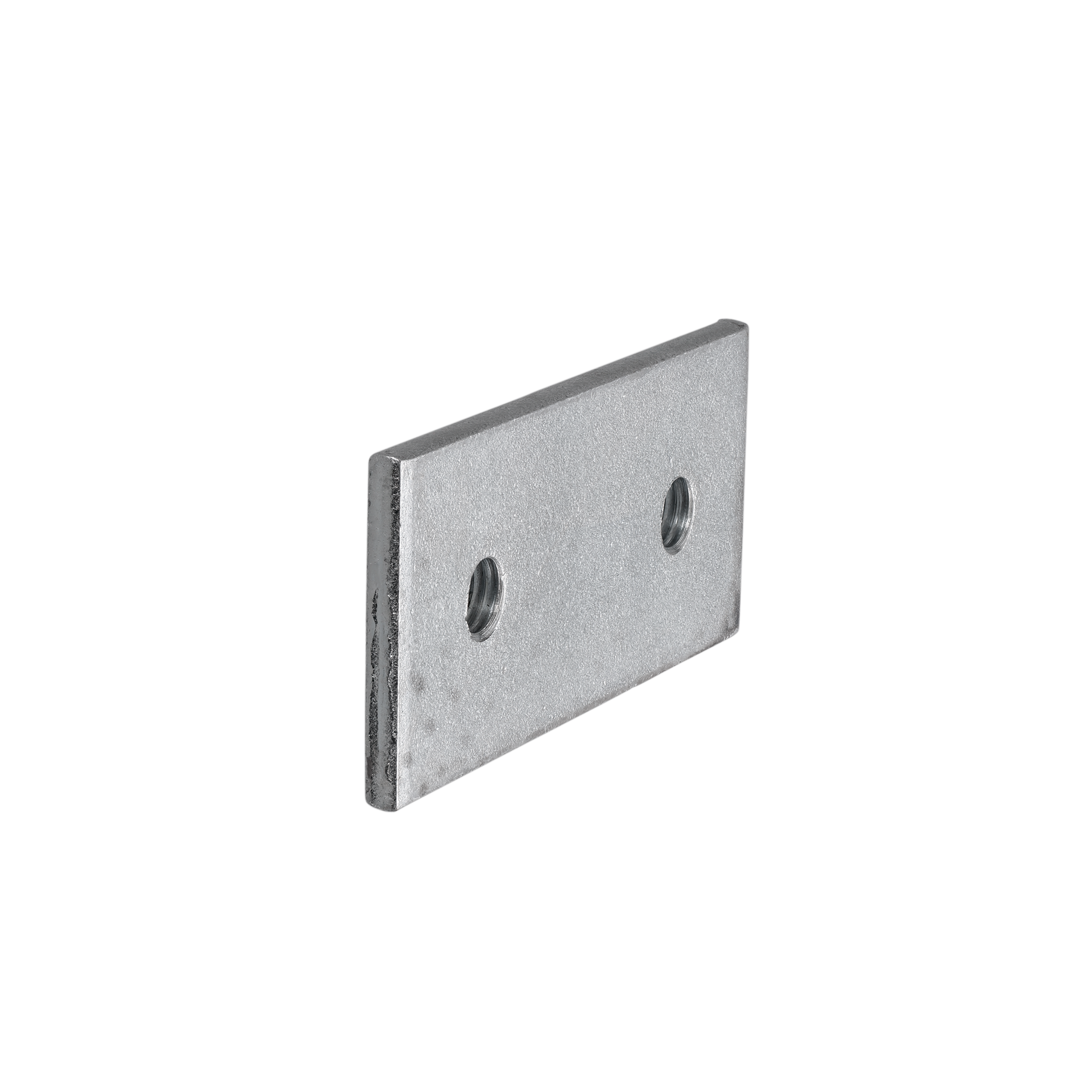

2 hole bar 50, M10, material S235JR, galvanised

Art.no.: 147866
Sales unit: 1 Pieces
Weight/item: 0.134 kg

Field of application

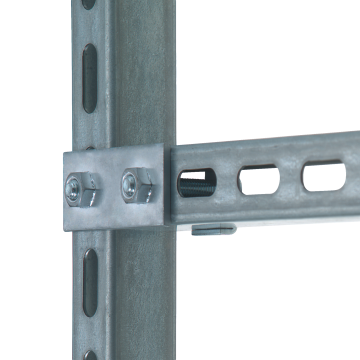

  • For transverse connection of MPC-Installation channels BV or SB
  • Bar for direct mounting on the back of the channel

Advantages

  • Connecting bar with welded-on hex nuts
  • Fast and easy mounting thanks to welded-on hex nuts
  • Standard version, galvanised
  • Also available in additional surface treatments on request
Connecting thread
M10
Material
Steel
DNV approval
Yes
Support channel systems
for MPC- and MPR-Profiles
eCl@ss 7.1
23-36-02-90
Basic data text
2 hole bar 50, M10, material S235JR, galvanised
Customs tariff number
72166110

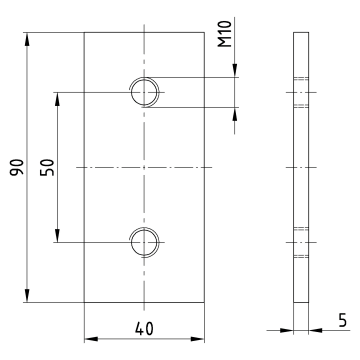

Length
90 mm
Width
40 mm
eCl@ss 11.1
23-36-02-90
Thickness
5 mm
For profiles
38/24 BV, 38/24 SB, 38/40 BV
Surface
galvanised
Product type
Connecting parts
Further technical details can be found in the data sheet.
