U-bolts, DIN 3570

V2A U-bolt, DIN 3570, form A, DN 65, 77 mm

Display variants as list

Surface:

galvanic galvanised hot-dip galvanised untreated V2A V4A

For pipe outer Ø:

20 - 22 mm 25 - 27 mm 30 - 34 mm 38 - 43 mm 45 - 49 mm 57 - 61 mm 77 - 77 mm 89 - 89 mm 108 - 115 mm 133 - 140 mm 159 - 169 mm 191 - 194 mm 216 - 220 mm 267 - 273 mm 318 - 324 mm 356 - 368 mm 407 - 419 mm 508 - 521 mm

Reset selection

Art.no.: 124908

Surface:	V2A
For pipe outer Ø:	77 - 77 mm

Sales unit:	1 Pieces
Weight/item:	0.203 kg

Field of application

Simple and efficient attachment of pipes to steel supporting structures, e.g. pipe bridges

Advantages

Various material and surface finishes available

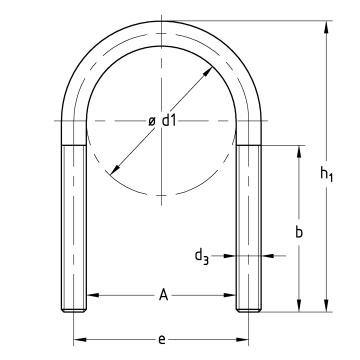

Dimension D3: M12
For pipe outer Ø: 77 - 77 mm
Surface: V2A
Pipe outer Ø D: 77 mm
Dimension H: 125 mm
Basic data text: V2A U-bolt, DIN 3570, form A, DN 65, 77 mm
Dimension b: 50 mm
Design: WA2
Code for surface: OV
Material: V2A stainless steel
Nominal size DN: 65
Dimension A: 82 mm
Customs tariff number: 73181535
Code for material: WA2
eCl@ss 11.1: 23-35-01-04
Product type: Accessories heavy-duty fastening
Material: V2A
Dimension E: 94 mm
eCl@ss 7.1: 23-35-92-01

Further technical details can be found in the data sheet.

U-bolts, DIN 3570, form A

Product number	Surface	For pipe outer Ø
124789	untreated	20 - 22 mm
124801	untreated	25 - 27 mm
124822	untreated	30 - 34 mm
124847	untreated	38 - 43 mm
124866	untreated	45 - 49 mm
124956	untreated	57 - 61 mm
124973	untreated	77 - 77 mm
124982	untreated	89 - 89 mm
125039	untreated	108 - 115 mm
125058	untreated	133 - 140 mm
125076	untreated	159 - 169 mm
125094	untreated	191 - 194 mm
113135	untreated	216 - 220 mm
113162	untreated	267 - 273 mm
113141	untreated	318 - 324 mm
113240	untreated	356 - 368 mm
113261	untreated	407 - 419 mm
113282	untreated	508 - 521 mm
124786	hot-dip galvanised	20 - 22 mm
124798	hot-dip galvanised	25 - 27 mm
124819	hot-dip galvanised	30 - 34 mm
124844	hot-dip galvanised	38 - 43 mm
124863	hot-dip galvanised	45 - 49 mm
124953	hot-dip galvanised	57 - 61 mm
124970	hot-dip galvanised	77 - 77 mm
124979	hot-dip galvanised	89 - 89 mm
125036	hot-dip galvanised	108 - 115 mm
125055	hot-dip galvanised	133 - 140 mm
125073	hot-dip galvanised	159 - 169 mm
125091	hot-dip galvanised	191 - 194 mm
113132	hot-dip galvanised	216 - 220 mm
113159	hot-dip galvanised	267 - 273 mm
113225	hot-dip galvanised	318 - 324 mm
113237	hot-dip galvanised	356 - 368 mm
113258	hot-dip galvanised	407 - 419 mm
113279	hot-dip galvanised	508 - 521 mm
131880	galvanic galvanised	20 - 22 mm
124804	galvanic galvanised	25 - 27 mm
124825	galvanic galvanised	30 - 34 mm
124851	galvanic galvanised	38 - 43 mm
124869	galvanic galvanised	45 - 49 mm
124959	galvanic galvanised	57 - 61 mm
124976	galvanic galvanised	77 - 77 mm
124985	galvanic galvanised	89 - 89 mm
125042	galvanic galvanised	108 - 115 mm
125061	galvanic galvanised	133 - 140 mm
125079	galvanic galvanised	159 - 169 mm
125097	galvanic galvanised	191 - 194 mm
113138	galvanic galvanised	216 - 220 mm
113165	galvanic galvanised	267 - 273 mm
113144	galvanic galvanised	318 - 324 mm
113243	galvanic galvanised	356 - 368 mm
113264	galvanic galvanised	407 - 419 mm
113285	galvanic galvanised	508 - 521 mm
124709	V2A	20 - 22 mm
124724	V2A	25 - 27 mm
124736	V2A	30 - 34 mm
124748	V2A	38 - 43 mm
124770	V2A	45 - 49 mm
124896	V2A	57 - 61 mm
124908	V2A	77 - 77 mm
124914	V2A	89 - 89 mm
124988	V2A	108 - 115 mm
125000	V2A	133 - 140 mm
125012	V2A	159 - 169 mm
125024	V2A	191 - 194 mm
125112	V2A	216 - 220 mm
113114	V2A	267 - 273 mm
113126	V2A	318 - 324 mm
113189	V2A	356 - 368 mm
113201	V2A	407 - 419 mm
113213	V2A	508 - 521 mm
124712	V4A	20 - 22 mm
124727	V4A	25 - 27 mm
124739	V4A	30 - 34 mm
124751	V4A	38 - 43 mm
124773	V4A	45 - 49 mm
124899	V4A	57 - 61 mm
124911	V4A	77 - 77 mm
124917	V4A	89 - 89 mm
124991	V4A	108 - 115 mm
125003	V4A	133 - 140 mm
125015	V4A	159 - 169 mm
125027	V4A	191 - 194 mm
125115	V4A	216 - 220 mm
113117	V4A	267 - 273 mm
113129	V4A	318 - 324 mm
113192	V4A	356 - 368 mm
113204	V4A	407 - 419 mm
113216	V4A	508 - 521 mm
