MPR-Sliding shoes

MPR-Sliding shoes

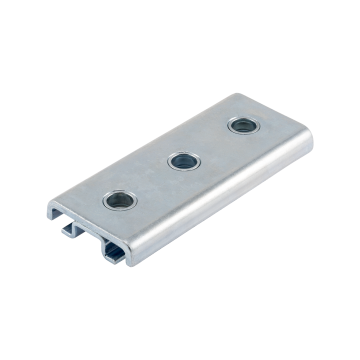

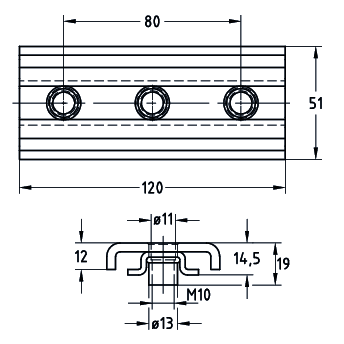

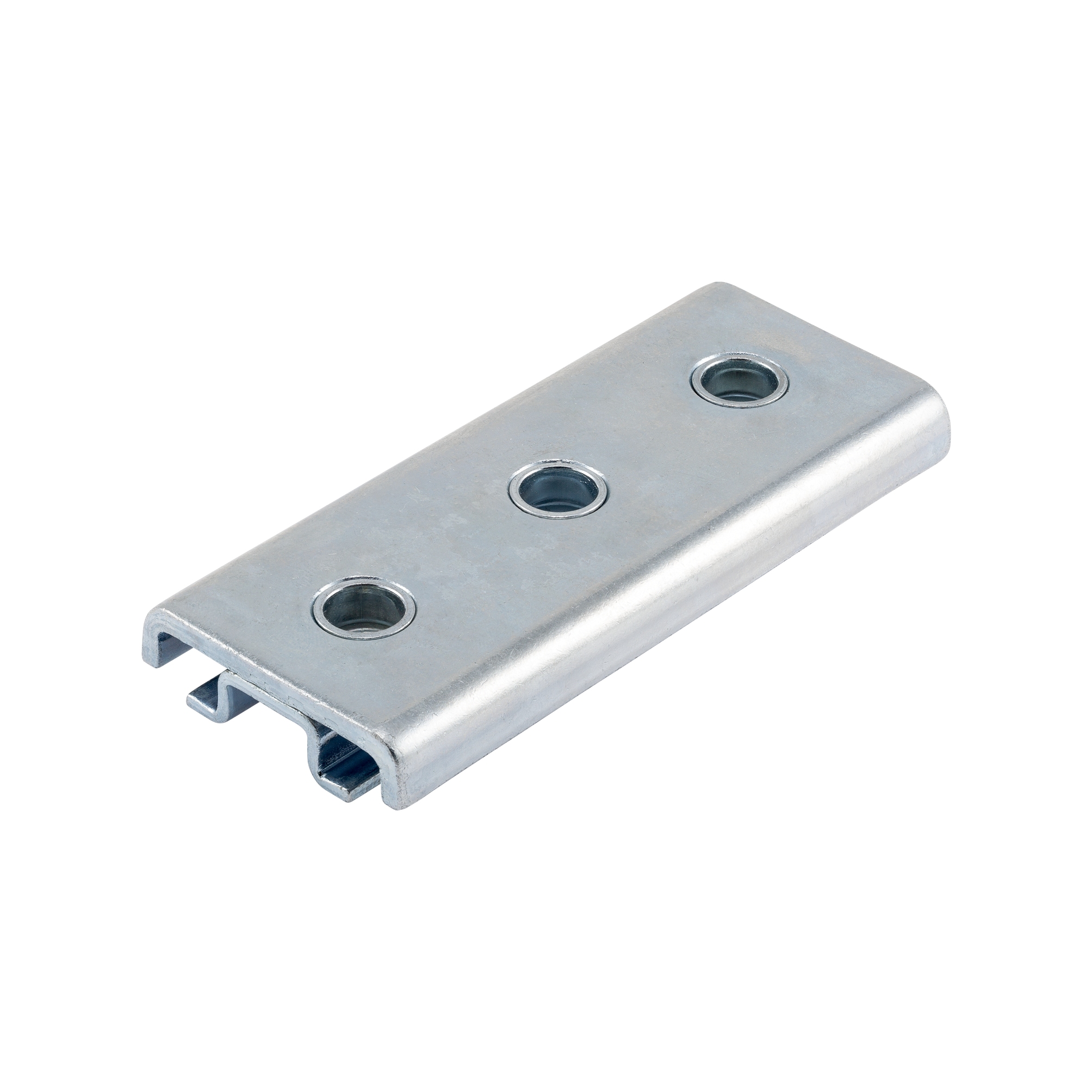

MPR-Sliding shoe M10, for MPR-Support channels 41/21-41/124, galvanised

Art.no.: 176154
Sales unit: 25 Pieces
Weight/item: 0.357 kg

Field of application

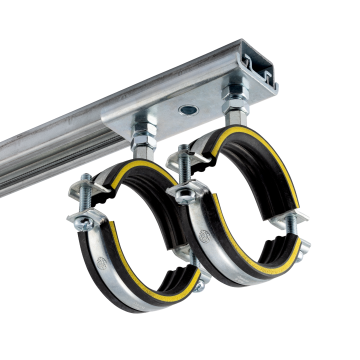

  • Attachment of pipes with thermal, axial expansion
  • Suitable for pipes mounted from above and from below
  • For use in dry interiors
  • Ideal for fastening plastic pipes with long sliding distances

Advantages

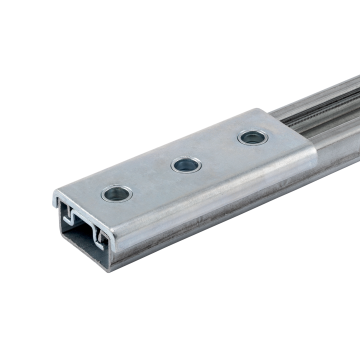

  • Length of sliding distance can be freely determined by suitable selection of support channel length
  • In connection with the MPR-Support channel 41/21 very low installation height of only 25 mm
  • For use with all MPR-Support channels from 41/21 to 41/124
  • Heavy-duty all-metal design
eCl@ss 7.1
23-30-16-01
Surface
galvanised
Material
Steel
Product type
Expansion points
Max. recommended load
5.4 kN
eCl@ss 11.1
23-30-16-01
Connecting thread
M10
Basic data text
MPR-Sliding shoe M10, for MPR-Support channels 41/21-41/124, galvanised
For profiles
41/21-41/124
Customs tariff number
73089098
Further technical details can be found in the data sheet.
