Cantilever brackets

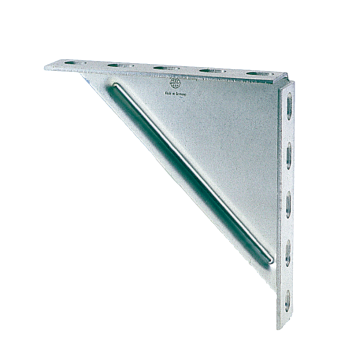

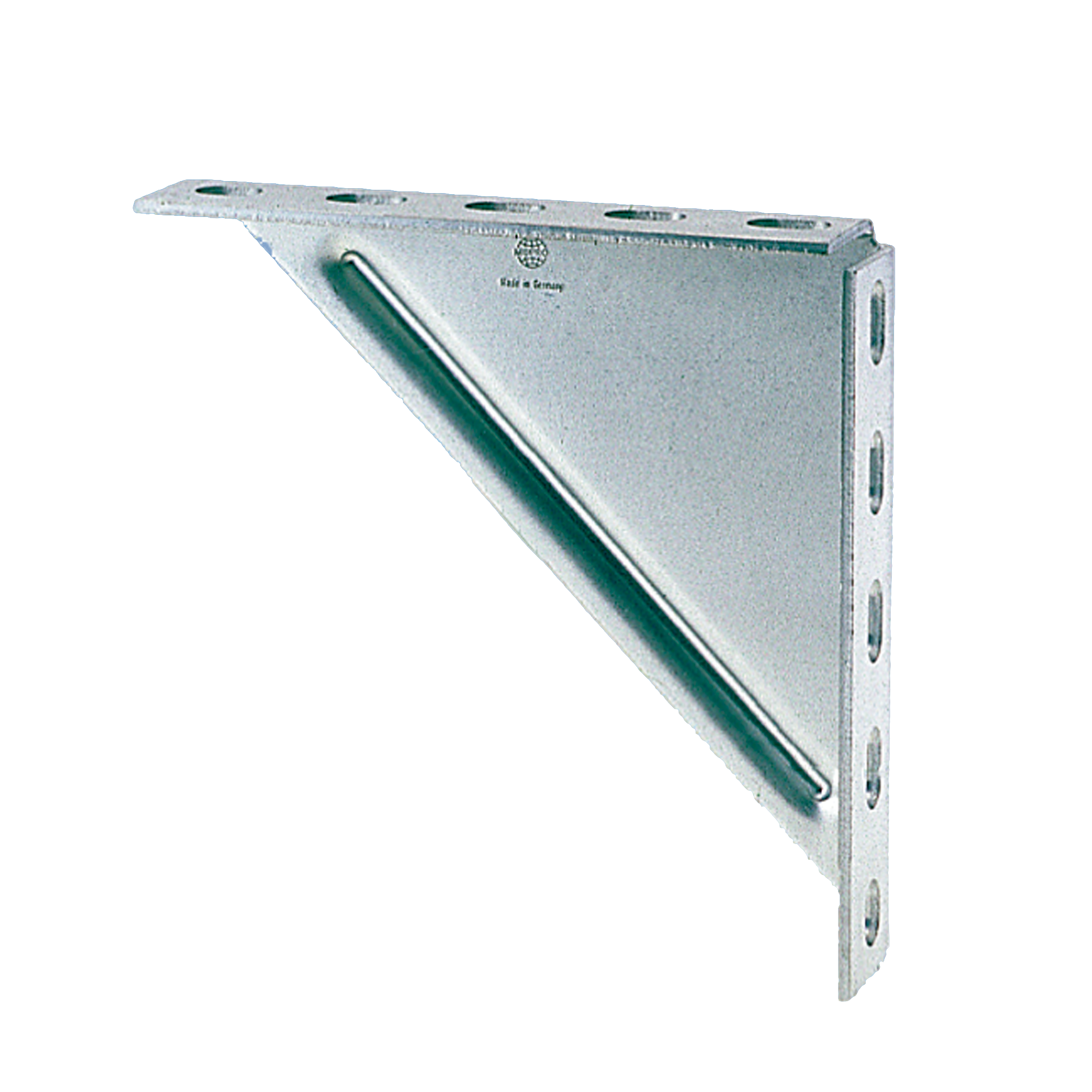

V2A MPC/MPR-Cantilever bracket type 1, 200 x 200 x 4 mm for profiles 38/40-40/60, 41/21-41/124

Display variants as list

Design:

100 x 100 x 4 mm 200 x 200 x 4 mm 200 x 200 x 6 mm 207 x 160 x 4 mm

Surface:

galvanised hot-dip galvanised V2A V4A

Reset selection

Art.no.: 113616

Design:	200 x 200 x 4 mm
Surface:	V2A

Sales unit:	1 Pieces
Weight/item:	1.012 kg

Field of application

Ideal connecting element for the construction of cross-beams and frames systems with support channels
Hot-dip galvanised and stainless steel - for indoor and outdoor use; galvanised - for indoor use

Advantages

Variety of mounting possibilities when used with MPC- and MPR-Support channels
Strengthening and increasing the loading capacity of support channels and traverses
Even greater strength values can be achieved by bolting two equalsided cantilever brackets together

Type: 1
Product type: Connecting parts
For profiles: 38/40, 40/60, 41/21-41/124
eCl@ss 7.1: 23-36-02-90
eCl@ss 11.1: 23-36-02-90
Support channel systems: for MPC-Profiles
Basic data text: V2A MPC/MPR-Cantilever bracket type 1, 200 x 200 x 4 mm for profiles 38/40-40/60, 41/21-41/124
Customs tariff number: 73269060
Design: 200 x 200 x 4 mm
Surface: V2A
Material: V2A
