DÄMMGULAST® linings

Vibration controlled pipe clamps

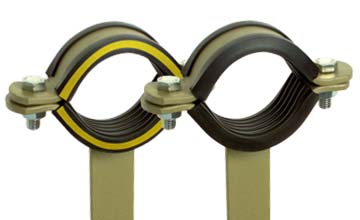

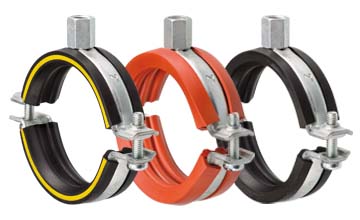

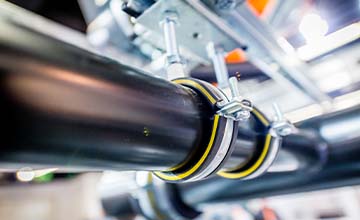

DÄMMGULAST® pipe clamp linings are ideal for decoupling pipework from the structure. They effectively reduce sound transmission, significantly improving sound insulation. The pre-assembled, non-slip inserts ensure maximum installation reliability. They are available in various task-specific designs and can easily be identified for the appropriate application thanks to their coloured identification stripes:

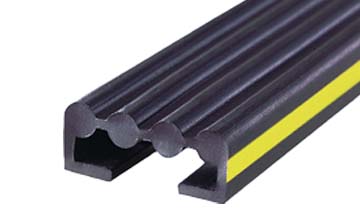

Yellow identification stripe: average noise level improvement of up to 22 dB(A), saltwater-resistant design to meet maritime requirements
Red lining: average noise level improvement of up to 24 dB(A), temperature range for use: -60 °C to +200 °C (steam pipes, hot water pipes, etc.)
Black lining: average noise level improvement of up to 20 dB(A), NBR oil-resistant and saltwater-resistant

Your advantages

Optimum rolling characteristics if pipe expands thanks to the roller profile in the lining

Prevents high pushing forces building up on the mount thanks to good rolling characteristics

Prevents friction and creaking noises when the length of pipes changes due to temperature changes

Wide clip-over edges prevent the lining from slipping out of the clamp
