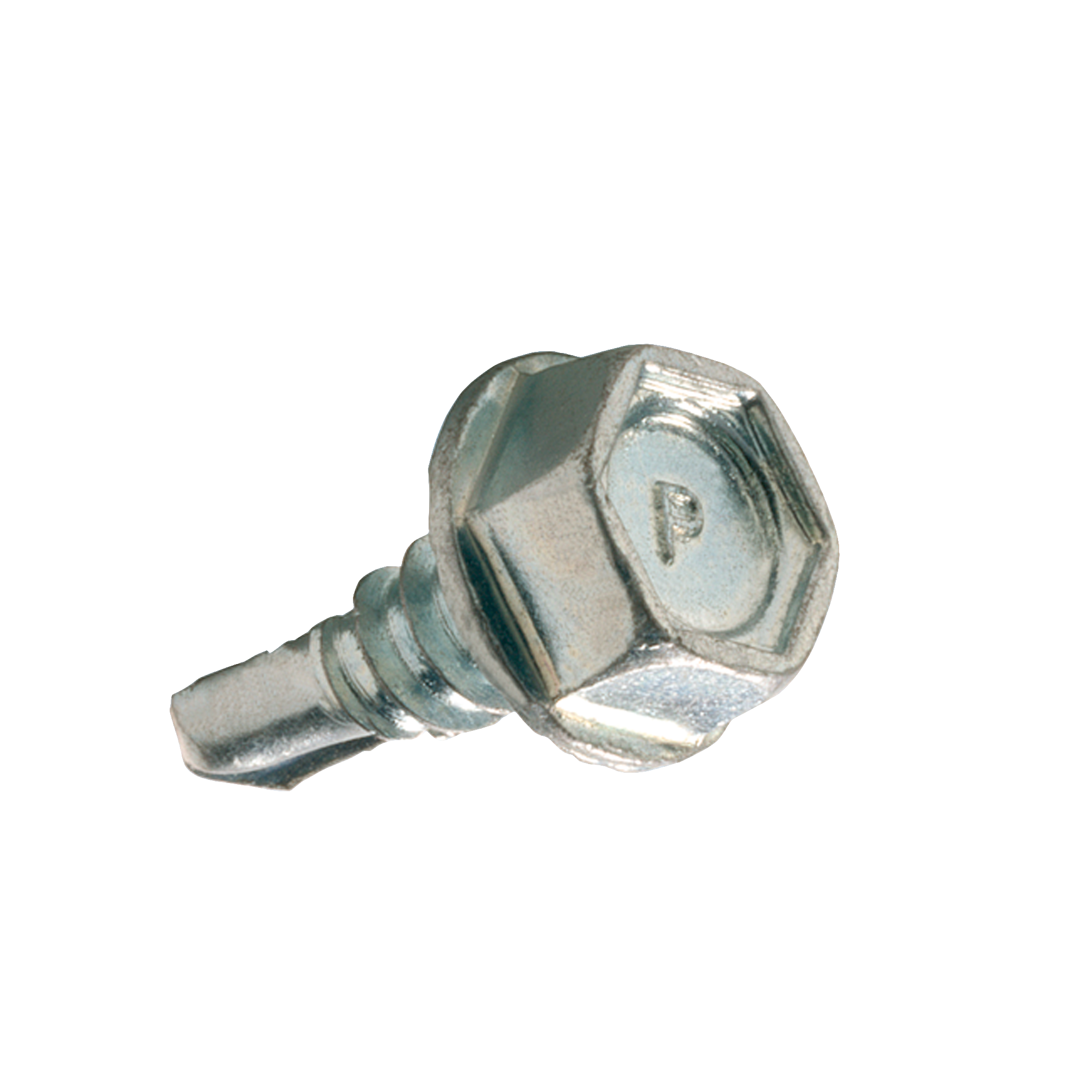

Self-drilling screws, DIN 7504

Display variants as list

Sheet metal thread G:

4.2 mm 4.8 mm 5.5 mm 6.3 mm

Length L [mm]:

13 16 19 22 25 32 38 45

Surface:

galvanised V2A

Select a variant for further information, images and documents.

Field of application

With hexagonal head, for the attachment of air pipes, ducts, spiral-seam pipes, without pre-drilling

Product number	Sheet metal thread G	Length L [mm]	Surface
106661	4.2 mm	13	galvanised
106663	4.2 mm	16	galvanised
106665	4.2 mm	19	galvanised
106666	4.2 mm	22	galvanised
106668	4.8 mm	13	galvanised
106670	4.8 mm	16	galvanised
106671	4.8 mm	19	galvanised
106672	4.8 mm	38	galvanised
106673	5.5 mm	32	galvanised
106674	6.3 mm	16	galvanised
106675	6.3 mm	25	galvanised
106676	6.3 mm	32	galvanised
106677	6.3 mm	45	galvanised
106660	4.2 mm	13	V2A
106699	4.2 mm	16	V2A
106664	4.2 mm	19	V2A
