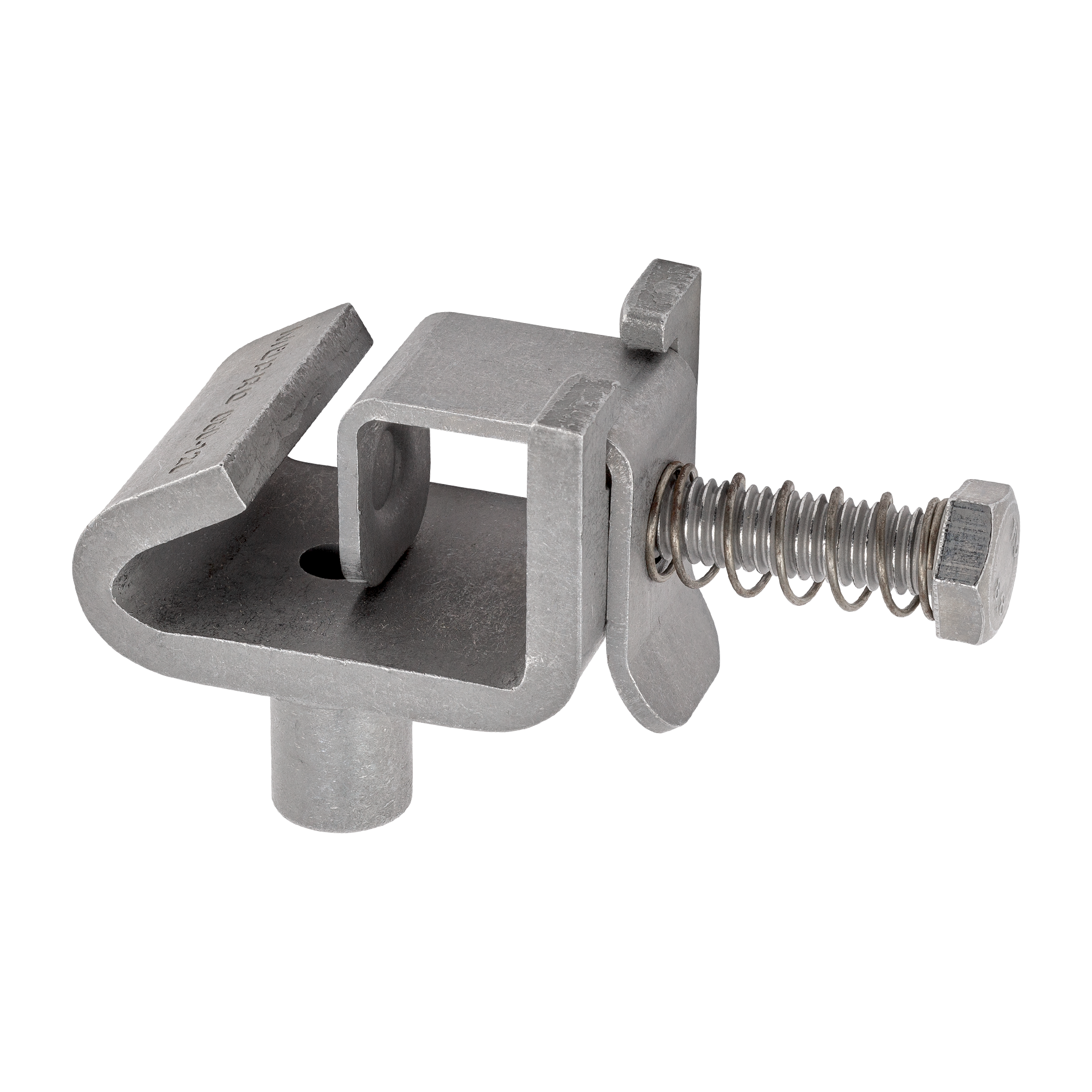

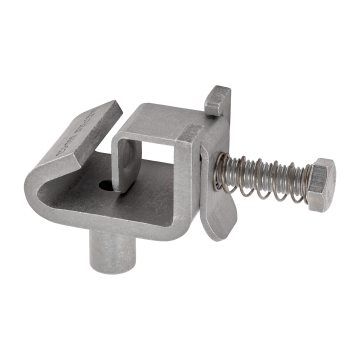

HP-Clamps

HP-Clamps

zinc lamella coating

Display variants as list

Field of application

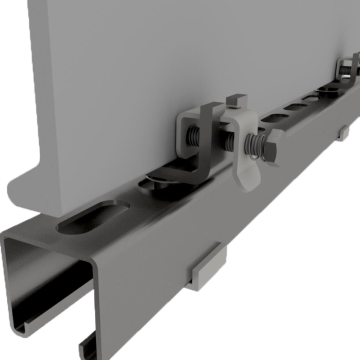

  • For simple and fast connection of fastening elements and equipment to bulb profiles of the ship's structure without welding

Advantages

  • Using just a single screw connection with little time required for fixing in comparison to the conventional fastenings
  • Direct and flexible fastening at any desired position on the bulb profile
  • Subsequent fixing also possible after conclusion of the "hot work"
  • Slip-resistant fastening to the bulb profile without damaging the corrosion protection due to clamp mechanism
  • Light-weight construction to meet the demands in terms of weight reduction in shipbuilding
  • High load-bearing capacity of up to 4.5 kN
Tightening torque:
15 Nm
Max. recommended load:
4500 N
